401 - front suspension (chassis) for Nissan Vanette Serena KVC23

	Frame / Series KVC23 / C23 body W (wagon ) engine CD20ET (2000 diesel turbo ﾃﾞﾝｾｲ) drive 2WD (two-wheel drive ) Manufacture period 01.1997 - 01.1998 grade FX transmission AT (automatic transmission )

---

Applies for models	Manufacture period	Spec
2WD.SR20DE +2WD.CD20T +GA16DE +CD20	05.1994 - 01.1997	メンバー パーツ
2WD.SR20DE +2WD.CD20ET +GA16DE +CD20	01.1997 - 01.1998	メンバー パーツ
2WD.SR20DE +2WD.CD20ET +GA16DE +CD20	01.1998 - ...	メンバー パーツ

Open full screen picture Up to the top

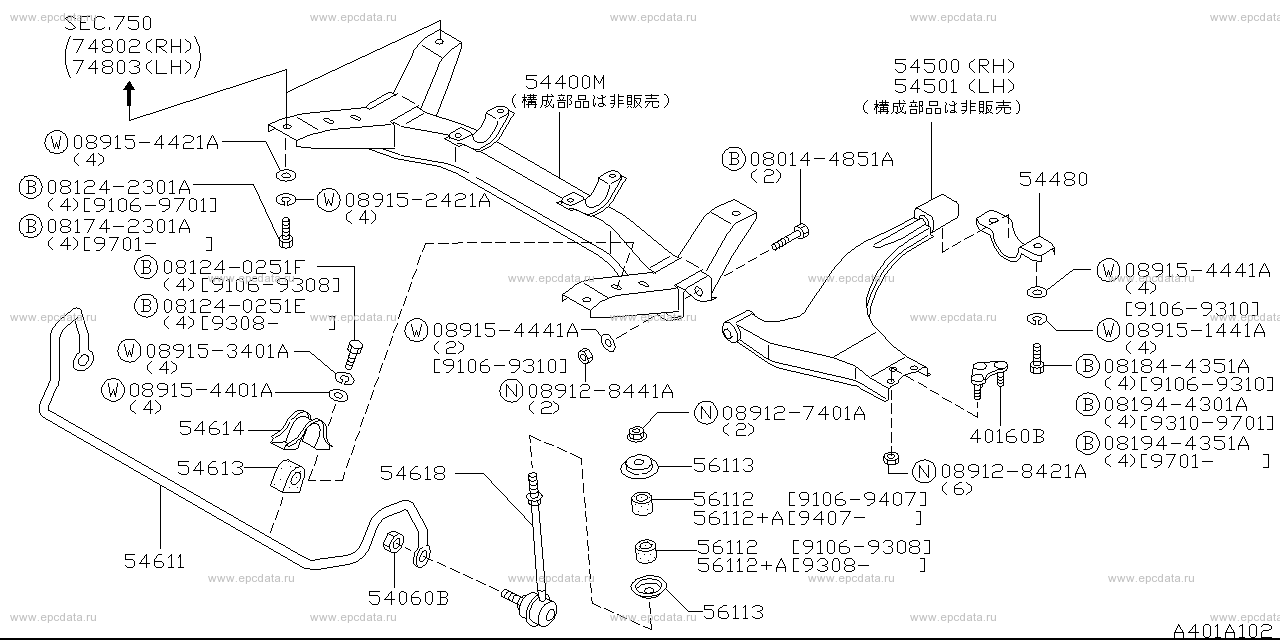

080144851A 081240251E 081240251F 081242301A 081742301A 081844351A 081944301A 081944351A 089127401A 089128421A 089128441A 089151441A 089152421A 089153401A 089154401A 089154421A 089154441A 40160B - bolt 54060B - nut 54400M - member complete, front suspension 54480 - bracket assembly, tension rod 54500 - link complete, transverse RH 54501 - link complete, transverse LH 54611 - stabilizer, front 54613 - bush, stabilizer 54614 - clamp, stabilizer 54618 - rod assembly, connecting stabilizer 56112 - bush 56112+A - bush 56113 - washer, special outer

---

Applies for models	Manufacture period	Spec
2WD.SR20DE +2WD.CD20T +GA16DE +CD20	05.1994 - 01.1997	ストラット パーツ

Open full screen picture Up to the top

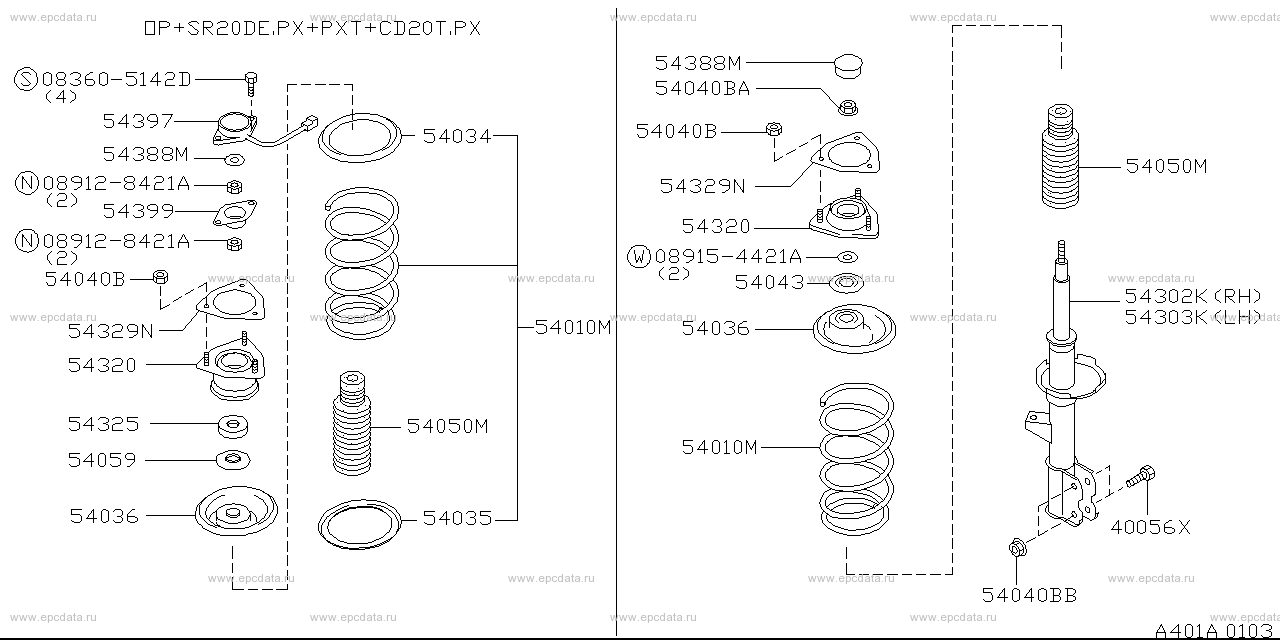

083605142D 089128421A 089154421A 40056X - bolt, knuckle arm 54010M - spring, front 54034 - seat, rubber front spring 54035 - seat, front spring lower rubber 54036 - seat, front spring 54040B - nut 54040BA - nut 54040BB - nut 54043 - washer, lock strut 54050M - bumper assembly, bound 54059 - seal, dust strut 54302K - strut kit, front suspension RH 54303K - strut kit, front suspension LH 54320 - insulator assembly, strut mounting 54325 - bearing, strut mounting 54329N - spacer, front strut insulator 54388M - cap, front strut cover 54397 - actuator assembly, adjustable shock absorber 54399 - plate assembly, actuator

---

Applies for models	Manufacture period	Spec
2WD.SR20DE +2WD.CD20ET +GA16DE +CD20	01.1997 - 01.1998	ストラット パーツ
2WD.SR20DE +2WD.CD20ET +GA16DE +CD20	01.1998 - ...	ストラット パーツ

Open full screen picture Up to the top

089116421A 089126421A 089154421A 40056X - bolt, knuckle arm 54010M - spring, front 54034 - seat, rubber front spring 54035 - seat, front spring lower rubber 54036 - seat, front spring 54040B - nut 54040BA - nut 54040BB - nut 54040E - clip 54043 - washer, lock strut 54050M - bumper assembly, bound 54059 - seal, dust strut 54302K - strut kit, front suspension RH 54303K - strut kit, front suspension LH 54320 - insulator assembly, strut mounting 54325 - bearing, strut mounting 54329N - spacer, front strut insulator 54388M - cap, front strut cover 54389 - cap, front strut cover LH 54396 - plate, actuator 54396+A - plate, actuator 54397 - actuator assembly, adjustable shock absorber 54397+A - actuator assembly, adjustable shock absorber 54576 - clamp

Vanette Serena KVC23
